Product description
1. This machine adopts 1000W fiber laser, which has high electro-optical conversion efficiency and longer laser service life; 2, the laser beam quality is very good, the welding speed is fast, more than 5 times the speed of the traditional fiber transmission laser welding machine, the welding effect is superb, the depth large, small taper, high precision, fully meet the needs of users in different industries, the welding is solid,smooth and beautiful; 3, the whole machine has low energy consumption, maintenance-free, high stability, can save users a lot of processing costs for long-term use; 4. The control system is a professional four-axis control system specially designed for laser welding. It has powerful PC control and is easy to program, debug and maintain. Protection, automatic or semi-automatic spot welding, butt welding, lamination welding, sealing welding, welding for complex flat lines, arcs and arbitrary tracks Connection; high stability, strong scalability, easy to learn and easy to use; 5, equipped with large workbench, platform XY dual-axis electric module, Z-axis with power-off brake motor, can be equipped with time rotating shaft, 3D laser welding can be realized for special-shaped three-dimensional products, with high speed and long life and high precision; 6, can be time splitting or energy splitting, suitable for different processing applications, multi-station processing applications, can be widely used in both spot laser welding for welding and continuous welding and flexible machining industries. 7, can be customized automatic fixtures, can be combined with assembly lines, photoelectric sensors, pneumatic fixtures and other combinations for automatic processing and mass production.

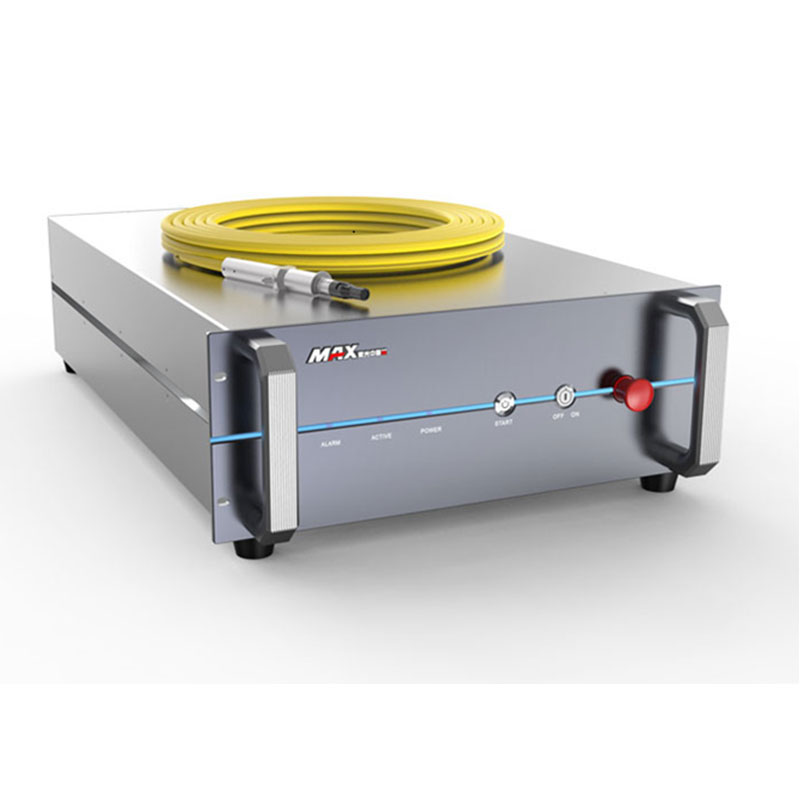

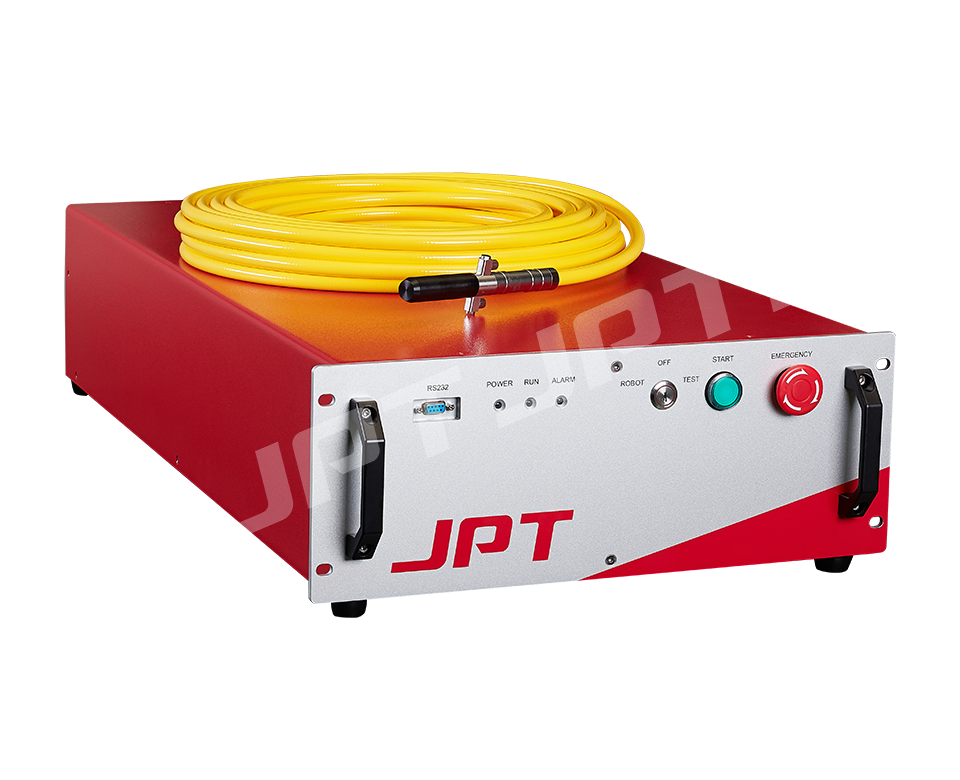

Adopting famous brands (Raycus, JPT, MAX, IPG and other brands), the photoelectric conversion rate is greatly improved, laser power is enhanced, has better welding effect, can according to the needs of customers with different configurations to meet customer needs.
Display on a video display by connecting the device. Claer welding point.

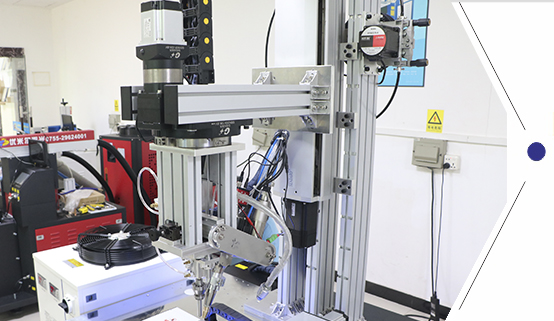

With the function of moving up and down, it can weld irregular products. The Z axis has brake function.
Argon gas blown out of the air pipe doesn't damage to material surface

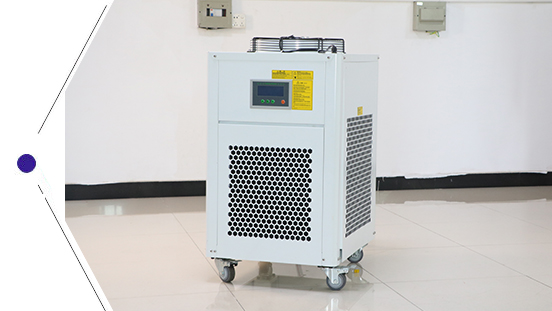

Equipped with with 1.5P chiller. it can meet the requirements for a long time. High power welding is more stable.
Standard cabinet, four-axis travel.
With different water machines and different welding heads, the stroke and welding effect will be different.

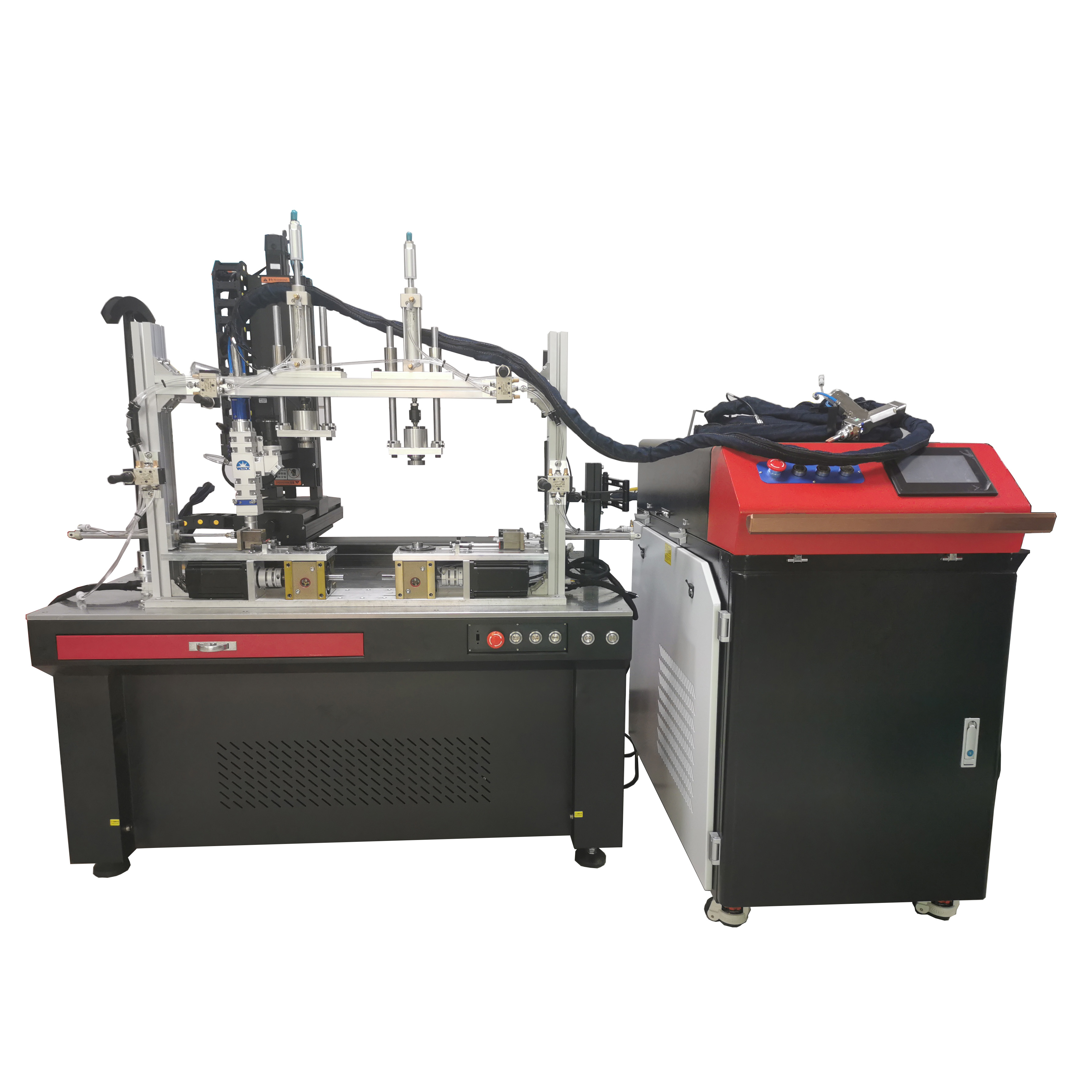

Desktop welding and handheld welding, multifunctional machine. One machine with multiple functions, customized fixtures, and multiple customized welding stations, work faster and more accurately.
1000W—220V
1500W—380V
2000W—380V
1000W—220V
1500W—380V
2000W—380V
| Device name / model | HM-1000W | HM-1500W | HM-2000W |
| Maximum laser power | 1000W | 1500W | 2000W |
| Laser type | fiber-optic laser |
| Laser wavelength | 1080±5 |
| Sport mode | continuous |
| Adjust frequency | 1000HZ |
| Thickness of welding material(dependingonthematerial) | ≤4.0 mm | ≤6.0mm | ≤8.0mm |
| Fiber core diameter | 5-7(50μm) |
| Fiber length | 10m-20m |
| Spectroscopy | Precision energy splitting or high-speed time splitting |
| Light mode | Red light |
| Welding gun head | Youmir/WSX |
| Total power | 8KW | 6KW | 12KW |
| Chiller cooling power | 1.5P | |
| Cooling method Water-cooled ambient temperature | 20℃-40℃ | |
| electricity demand | 220V/380V±5V50Hz/40A | |
| Dimensions / net weight | Host computer: | 139*139*186CM | 407kg |
| cooling-water machine: | 79*56*108CM | 93.5kg |
| Comparison project | Argon arc welding | YAG laser welding | Continuous laser welding |
| Heat input | Very high | Low | General |
| Deformation, undercut | Big | Small | Small |
| firmness | It is good | General | It is good |
| Follow-up | Polishing | Slightly polished or not polished | Slightly polished or not polished |
| Welding speed | General | More than 2 times argon arc welding | More than 2 times argon arc welding |
| Applicable material | Stainless steel, carbon steel, galvanized sheet, aluminum, copper | Stainless steel, carbon steel, galvanized sheet, aluminum, copper, nie, gold, silver | Stainless steel, carbon steel, galvanized sheet, aluminum, copper, Nie |
| Consumables | More consumables | General supplies | Less consumables |
| operating | Complex | General | Simple |
| safety | Unsafe | Safety | Safety |
| surroundings | Not environmentally friendly | Environmental protection | Environmental protection |
| Fault tolerance | It is good | It is good | It is good |
| Swing welding | No | No | Have |
| Spot width | No | 0.1-3MM | 0.1-5MM |
| Welding quality | Difference | General | Well |
| Argon consumption | 15PSI | 30PSI | 40PSI |
| Melting depth | High | low | High |
| Applicable thickness | 2-10MM | 0.2-3MM | 0.2-5MM |
| Radiation | High | No | No |
|
|

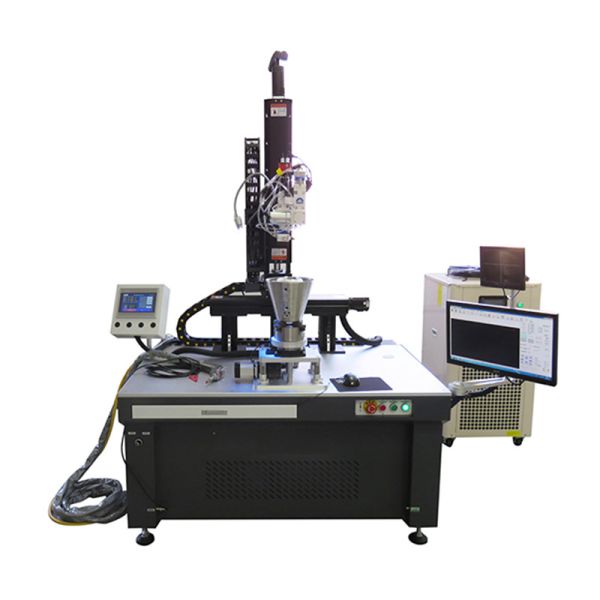

1000W welding metal stainless steel automatic fiber continuous welding machine Images
|
